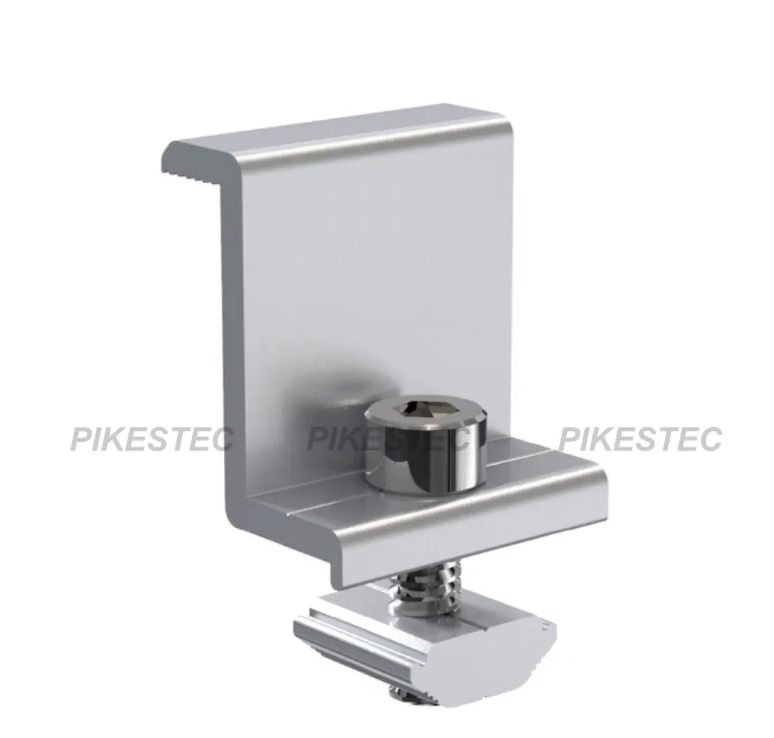

The end clamp kit is a basic element for securing solar panels to installation structures. It is compatible with various panel models and adjustable to different sizes. Its simple design and included instructions make installation easy.
Tags:
End Clamp Kit
Product Detail
Product Highlights: End Clamp Kit – TSUN Solar End Clamp Kit | Technical White Paper
1. Revolutionary Structural Design
3D Locking Mechanism
Patented interlocking teeth design provides 1200N clamping force, supporting wind resistance up to level 17 (wind speed 60 m/s).
Self-Adjustment
Compatible with frame thicknesses of 30–50 mm (covers 166 / 182 / 210 mm modules).
±10 mm lateral tolerance eliminates the influence of on-site installation errors.
2. Military-Grade Material Standards
6061-T6 Aerospace Aluminum
Tensile strength ≥ 290 MPa; corrosion resistance is 5× higher than galvanized steel.
304 Stainless Steel Fasteners
Nickel content ≥ 8.5%; passes 2000-hour salt spray test with zero rust.
UV5000h Protection
Anodized aluminum surface extends UV aging resistance lifespan by 3×.
3. Versatile Application Scenarios
① Residential Roof Systems
Pre-set torque markers allow for single-person installation in 30 seconds per module.
Passes 5400 Pa wind uplift test (equivalent to a level 18 typhoon).
② Commercial and Industrial PV Systems
Compatible with 8 roof types including metal, concrete, and asphalt.
Non-penetrative clamp design protects building structural integrity.
③ High Altitude / Coastal Projects
Tested from -50°C to +85°C for extreme climate adaptability.
Certified for salt corrosion and UV resistance, ideal for coastal or high-radiation regions.
4. Cost-Effectiveness
Reduced Installation Time
Standard tools complete 95% of assembly; labor hours reduced by 40%.
Lower Lifecycle Costs
Maintenance cost reduced by 60% over 25 years (no fastener replacements required).
Accelerated ROI
Lowers system LCOE by ¥0.006/kWh; shortens investment payback period by 8 months.
5. Full Lifecycle Warranty
12-Year Structural Warranty
Covers structural issues such as material corrosion and weld fractures.
25-Year Performance Warranty
Wind/snow load resistance degradation remains <5% over the product's lifespan.
Global Spare Parts Network
8 regional warehouses; emergency parts delivery within 72 hours.
FAQ Highlights
P1: How does the clamp fit a variety of frame thicknesses?
A: Self-adjusting nut design fits 30–50 mm frames via a rotating adjustment ring—no part replacement required.
P2: How safe is it under extreme wind conditions?
A: Tested to 5400 Pa wind pressure (level 18 typhoon equivalent); 3D locking design triples wind resistance. Dual anti-loosening mechanisms on key joints ensure lasting stability.
P3: Is the clamp suitable for coastal, high-corrosion environments?
A: Yes. 304 stainless steel and anodized aluminum construction withstands 2000-hour salt spray testing, with a corrosion rate <0.01 mm/year and service life exceeding 25 years.
P4: Are special tools needed for installation?
A: No. 95% of installation tasks can be completed with a standard 13 mm wrench. Pre-set torque indicators ensure precision. New installers can be trained in under 1 hour.
P5: How is long-term clamping force ensured?
A: Spring washer and anti-loosening nut provide dual locking. Clamp force loss remains below 2% over 25 years. Key components are covered by a 12-year structural warranty.
TSUN End Clamp Kit – Military-Grade Safety for Every Solar Module
Protect your PV system with confidence. Choose TSUN clamp kits and enjoy 25 years of maintenance-free operation.
Contact us now for a quote or more information
